ADV-700 | Modular EBM Machine

The ADV-700 represents an excellent choice for plastic bottle manufacturers requiring high production volumes. Designed to handle containers from 100 ml to 5 liters, the machine enables the production of monolayer or multi-layer containers up to COEX-6.

Stroke 700 mm | Bottle Size 100 ml / 5L

Cavities 4-20 / 8-40 | Clamping Force 190kN

Request more information

ADV-700. Gradual investment.

The ADV-700 Full Electric Blow Molding machine is an optimal model for companies that require high production batches of plastic bottles.

Its modular configuration is a key distinguishing feature: the system allows for progressive investment, with the possibility to easily upgrade (by simply adding mechanical parts) from the 2-carriage version (ADV2) to the 4-carriage version (ADV4), depending on increasing production requirements.

This model is an excellent choice to:

replace hydraulic machines
gradually increase production capacity
integrate a new production line

Examples of ADV-700 model productivity

220ML

Number of cavities 10

Hourly and daily production

ADV2-700 | 7.350 bph – 176.400 bpd

ADV4-700 | 14.700 bph – 352.800 bpd

750ML

Number of cavities 4

Hourly and daily production

ADV2-700 | 2.290 bph – 54.960 bpd

ADV4-700 | 4.580 bph – 109.920 bpd

Number of cavities 6

Hourly and daily production

ADV2-700 | 4.320 bph – 103.680 bpd

ADV4-700 | 8.640 bph – 207.360 bpd

Number of cavities 3

Hourly and daily production

ADV2-700 | 1.525 bph – 36.600 bpd

ADV4-700 | 3.050 bph – 73.200 bpd

Number of cavities 3

Hourly and daily production

ADV2-700 | 1.225 bph – 29.400 bpd

ADV4-700 | 2.450 bph – 58.800 bpd

The advantages of the ADV-700 model

Opportunity for gradual investment

The modular configuration of this machine allows an easy extension from 2 to 4 carriages, adapting to future production increases.

Single Extrusion Head, maximum repeatability

This high-efficiency model can be configured with 2 or 4 carriages while maintaining a single extrusion head. This structure ensures consistent product quality and high process repeatability.

Ready for In Mold Labeling

The ADV model is designed to accommodate the IML in-mold labeling system with either 2 or 4 carriages, thanks to its specific configuration.

ADV-700 un modello di soffiatrice altamente produttivo

Process repeatability, consistent quality.

The ADV-700 model is suitable for the production of packaging for the Food and Dairy, Personal Care, Detergents, Chemical Products, Lubricants, and Freeze Boards sectors. The ADV-700 Extrusion Blow Molding machine can process various plastic materials, including LDPE, HMWPE, HDPE, and PP, in both single-layer and multi-layer configurations (up to COEX-6), depending on the customer’s production requirements.

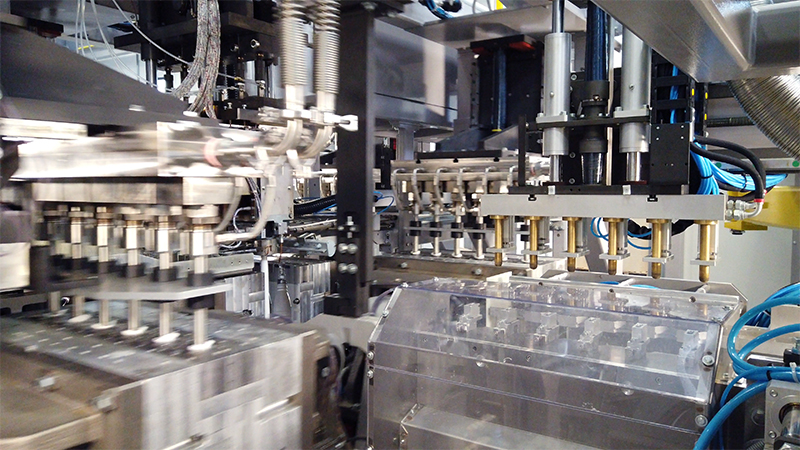

Productivity comparison: ADV4-700 vs E2-1250.

When comparing the productivity of the ADV4-700 model (4 carriages) with the larger model of the E-line series, the E2-1250, it becomes clear that the ADV is able to reach and exceed a production of 100,000 bottles per day (250 ml). For this reason, the ADV4-700 — a model long established by Techne — is confirmed as a particularly suitable solution for meeting extremely high production demands.
