TK-750

Medium Extrusion Blow Molding machine | Industrial

Stroke 750 mm

The TK-LINE series offers 3 core benefits – low consumption, low maintenance, and ease of use. It can help you overcome the maintenance and process issues that you face every day.

All areas of the machine can be accessed safely and easily, from the moulds to the head, extrusion platform, and electric cabinet. Therefore, parts can be removed and replaced quickly when necessary, to get your production line up and running again swiftly with minimal downtime.

The PLC machine control is a user-friendly graphic interface also for those operators unused to working with full electric machines that allows:

  • Data exchange according to the standard OPC that promotes interconnectivity in Industry 4.0;
  • Receiving messages remotely on smartphone or tablet computer for data read and export.



Download the datasheet to view more detailed technical features

TK1-750

CAVITIES NUMBER 02 03 04
MAX CENTER DISTANCE mm 365 235 175
MAX BOTTLE WIDTH mm 328 211 157
MOULD CARRIAGE STROKE mm   750

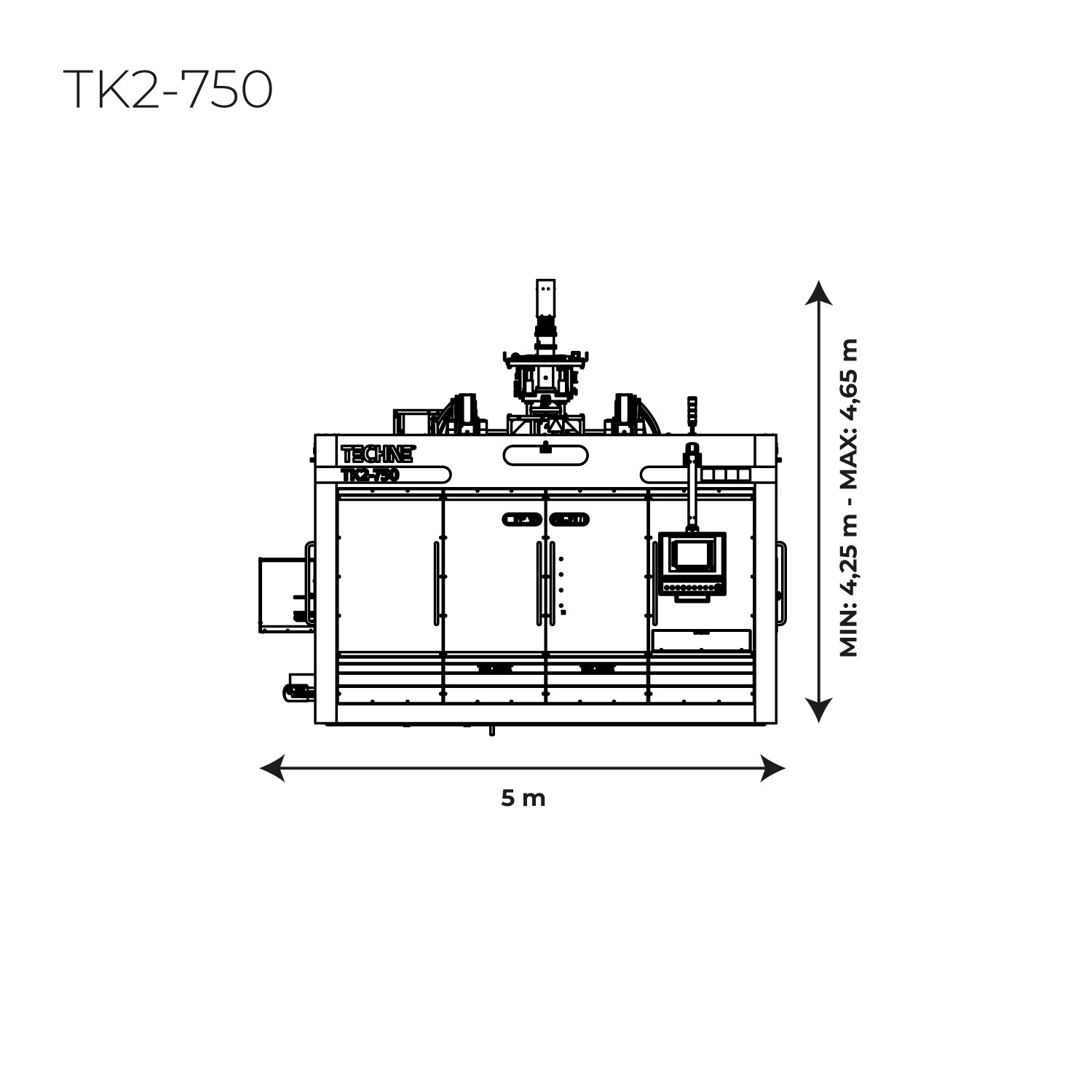

TK2-750

CAVITIES NUMBER 02 03 04
MAX CENTER DISTANCE mm 345 225 165
MAX BOTTLE WIDTH mm 310,5 202 148
MOULD CARRIAGE STROKE mm   750
