E2-820

Medium Extrusion Blow Molding machine

Stroke 820 mm

The E2-820 machine with its single and double shuttle configuration, is a flexible and perfectly suitable solution for end users and Converters who are looking for a machine with a medium to high production capacity.

The 820 mm stroke allows you to manufacture containers with 1 to 6 layers and capacities that range from 50 ml (neck to neck) in 20+20 cavities, up to 10L in 2+2 cavities.

The E-LINE series offers 3 core benefits – low consumption, low maintenance, and ease of use. It can help you overcome the maintenance and process issues that you face every day. All areas of the machine can be accessed safely and easily, from the moulds to the head, extrusion platform, and electric cabinet. Therefore, parts can be removed and replaced quickly when necessary, to get your production line up and running again swiftly with minimal downtime.

The PLC machine control is a user-friendly graphic interface also for those operators unused to working with full electric machines that allows:

  • Data exchange according to the standard OPC that promotes interconnectivity in Industry 4.0;
  • Receiving messages remotely on smartphone or tablet computer for data read and export.



Download the datasheet to view more detailed technical features

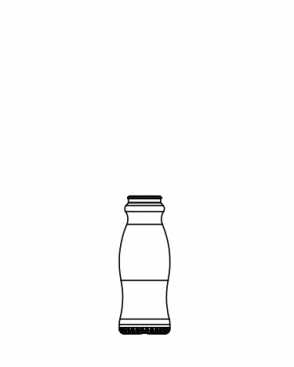

  • 220 ml
    220 ml

    Net weight
    20 g
    Cavity number
    10
    Cycle time
    11,5 sec

    E2-820:
    6.000 b/h

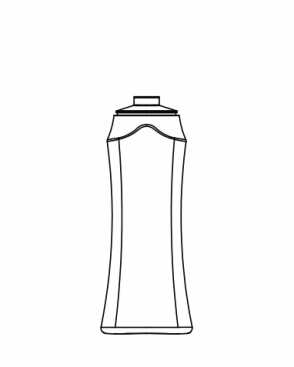

  • 700 ml
    700 ml

    Net weight
    42 g
    Cavity number
    7
    Cycle time
    12,5 sec

    E2-820:
    4.800 b/h

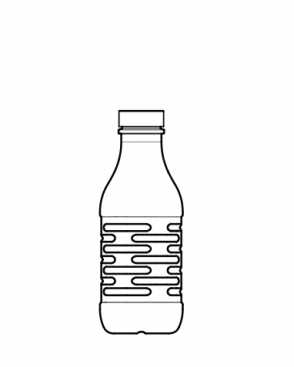

  • 1.000 ml
    1.000 ml

    Net weight
    29 g
    Cavity number
    6
    Cycle time
    12 sec

    E2-820:
    4.300 b/h

  • 2.500 ml
    2.500 ml

    Net weight
    110 g
    Cavity number
    4
    Cycle time
    16 sec

    E2-820:
    2.000 b/h

  • 5.000 ml
    5.000 ml

    Net weight
    190 g
    Cavity number
    3
    Cycle time
    20 sec

    E2-820:
    1.200 b/h

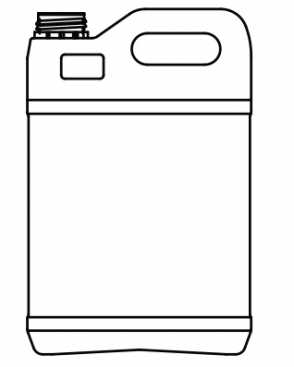

  • 10.000 ml
    10.000 ml

    Net weight
    500g
    Cavity number
    3
    Cycle time
    27 sec

    E2-820:
    500 b/h

CAVITIES NUMBER 02 03 04 05 06 07 08 09 10
MAX CENTER DISTANCE mm 380 250 185 147,5 122,5 105 90 80 72,5
MAX BOTTLE WIDTH mm 341,5 224,5 166 132,5 110 94 80,5 71,5 65
MOULD CARRIAGE STROKE mm         820
